PVD Coating Technology

Technologies we use in PVD Coating

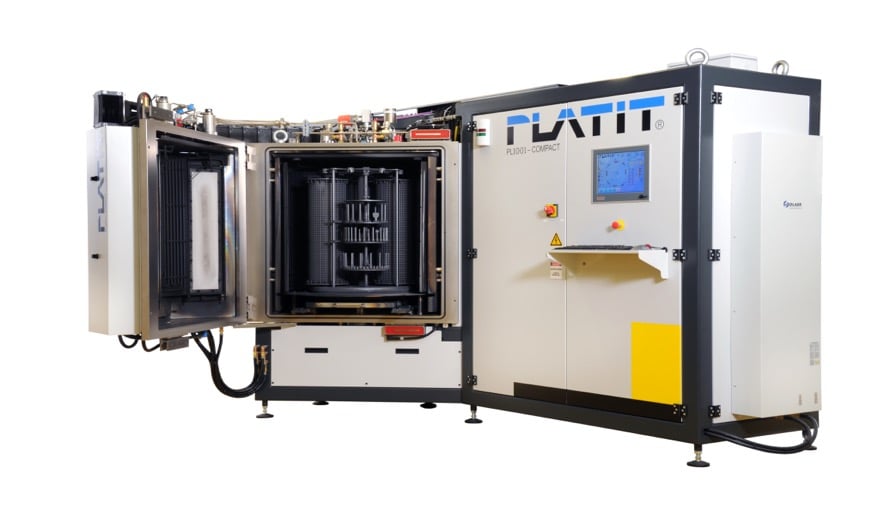

High quality PVD coating production is performed through Platit PVD coating system in our company.

Advantages provided by Platit PVD coating technology:

High ionization efficiency
High plasma density
Void-free, intensive coating production
High coating hardness
Perfect adherence of the coating to the base material
High coating efficiency
Low friction coating production
Coating surface with low roughness
Production of coating resistant to all wear mechanisms
High coating production flexibility with 4 planar cathodes
Even coating thickness all over the coated part
New generation triple / quad series nano-composite coating production competence

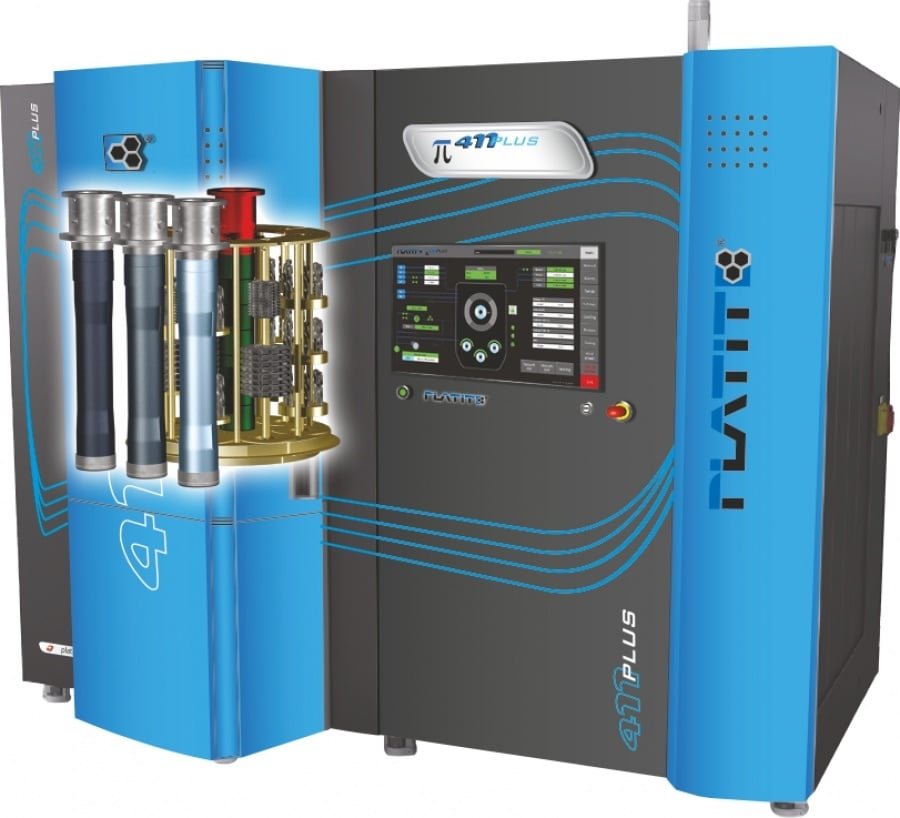

The first in Turkey: : PLATIT π411PLUS

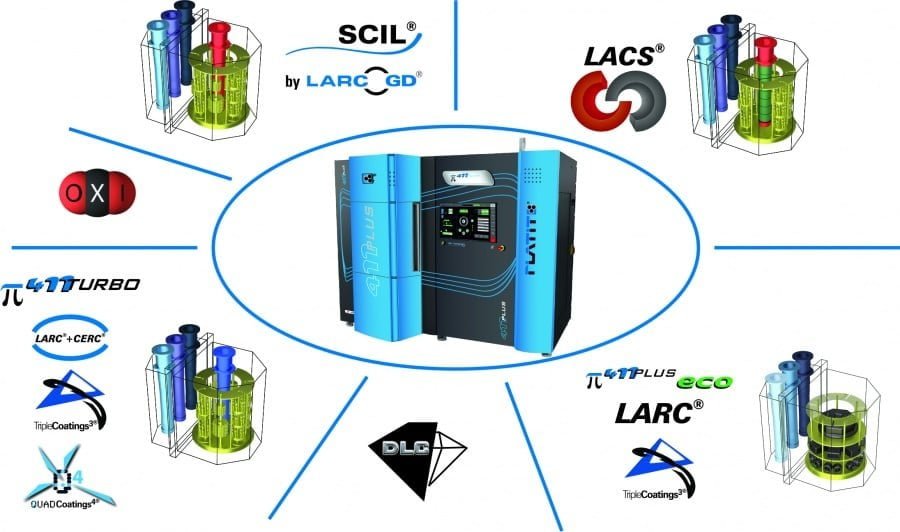

It is the world’s most advanced PVD coating system based on PLATIT LARC® AND CERC® technologies.

With its Side Zone Rotary Cathode and Central Rotary Cathode systems, PVD coatings with ultra-high structural density and superior mechanical properties can be produced.

The coating temperature can be selected, in the temperature range between 230 ° C and 550 ° C, and precisely controlled according to the type of base material to be coated.

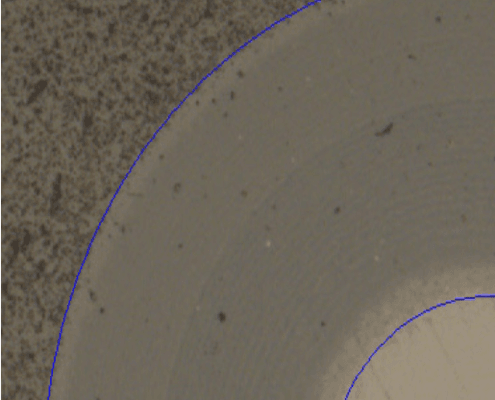

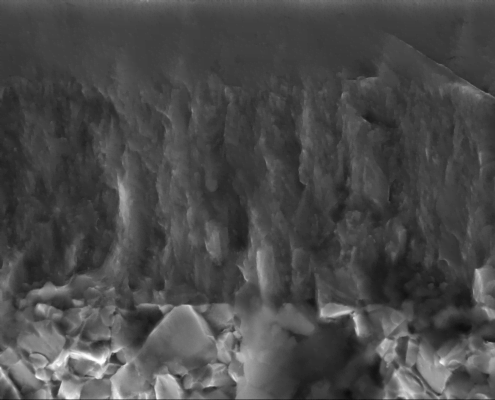

In addition to the production of all monolayer, multilayer, nano gradient, nanolayer and nanocomposite coatings, it also enables the production of the most advanced technology special coatings called TRIPLE3 and QUAD4.

In addition to the basic traditional coatings, it is possible to obtain new generation coatings such as special nACo⁴, nACRo⁴, TiXCo⁴ and ALL⁴ of Platit Pi-411 PLUS system. These special series coatings offer nano-layer and nano-composite film properties simultaneously and provide outstanding high hardness, film strength and abrasion resistance properties.

Platit pi411Plus PVD Kaplama Teknolojisi

Furthermore, it is possible to obtain a high uniformity coating film structure through its 1 central and 3 lateral rotating cathode systems. Moreover, cathodes with rotating systems evaporate much more homogeneously than conventional cathode mechanisms, and thus superior coating surface properties (surface smoothness, low friction coefficient) can be obtained.

PLATIT Pi-411 PLUS is an extremely dynamic system. Due to its high ionization energy efficiency and improved coating growth rate, it is possible to perform production of high-quality coating in short cycle times.

The developed automation software of the system makes controls by taking measurements from more than 100 points during the coating process and keeps the coating system completely independent from human error by keeping each step under control. Thus, it can be possible to obtain reproducible and identical coatings at each coating charge.

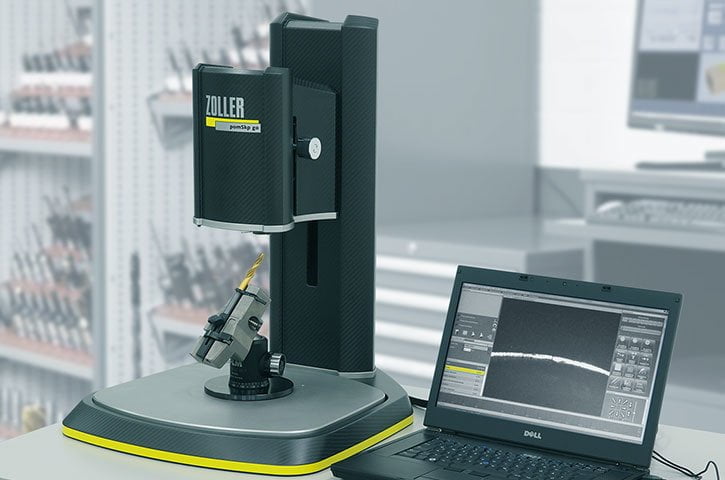

The First in Turkey: ZOLLER PomSkpGo Cutting Tool Edge-Corner Rounding Measuring Device

Our single edge-corner rounding measuring device with 3 µm. lens sensitivity is ready to use.

Through our new investment on Zoller PomSkpGo Measuring Device, we measure the effectiveness of the Drag Finishing process we carry out before PVD coating to your cutting tools.

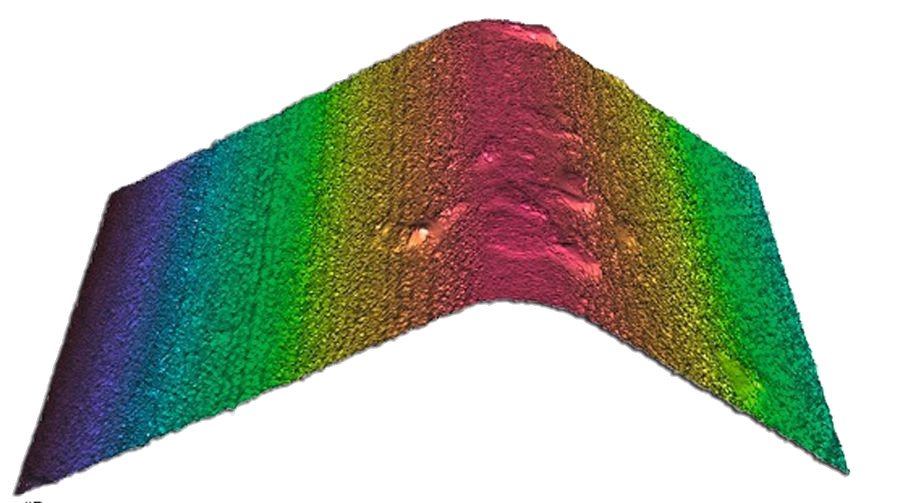

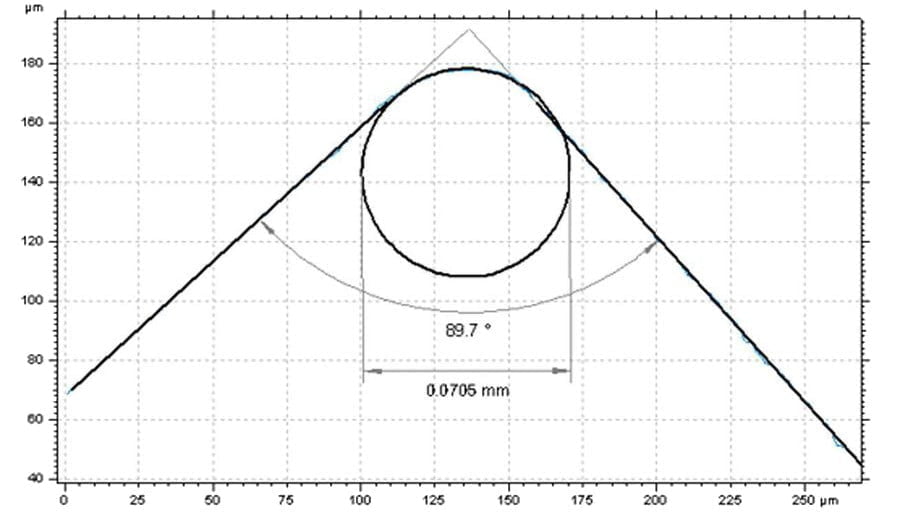

We, in Turkey, have the only edge rounding measuring device with 3 µm. lens sensitivity. We can measure, with a high precision, the edge rounding radius of the cutting tools, drag finishing processes of which have been carried out, and also measure the k-factors of the cutting edges.

In this way, we can detect the sharp corners and edges that are at risk of breaking during machining in advance and make the necessary intervention and maximize the performance to be taken from the cutting tool after coating.
